InnovaShelf - 300 lb. Rated TBR-LOC Floating Shelf Brackets (TBR-LOC-2762)

Concealed steel mounting. Wall mounted. Rated by the pair.

Proudly Made in the USA. Origin: Montgomery, Indiana.

InnovaShelf - 300 lb. Rated TBR-LOC Floating Shelf Brackets (TBR-LOC-2762)

Price

$53²⁴

Save

Mounting Substrate

Wood

Length

4" 6" 8"

Quantity of Pairs

1 10 50 100

In stock, ready to ship

Quantity

Overview

The TBR-LOC-2762 Floating Shelf Brackets are concealed steel brackets for thicker, denser timber shelves. The hardware stays hidden once the shelf is installed. The adjustable two-piece design makes installation and shelf alignment easier.

Key Features

Features: Reinforced arms and expanded anchor points provide enhanced support for thicker, denser timber shelving applications, creating a secure and stable installation.
Adjustable: Two-piece design allows for easier installation, positioning, and alignment to help achieve a precise floating shelf fit.
Supports: Heavy-duty construction supports up to 300 lbs. per pair when properly installed, delivering reliable strength for larger storage and display applications.
Compatible: Designed for use with shelves ranging from 3" to 8" thick, accommodating extra-thick shelving materials for a bold, substantial floating shelf design.

Specifications

Model: TBR-LOC-2762
Material: Steel
Dimensions/Weights:
- Wall Plate Height: 2 3/4"
- Arm Diameter: 5/8"
- Weight Rating: 300 lb.
- Minimum Shelf Thickness: 3"
- Maximum Shelf Thickness: 8"

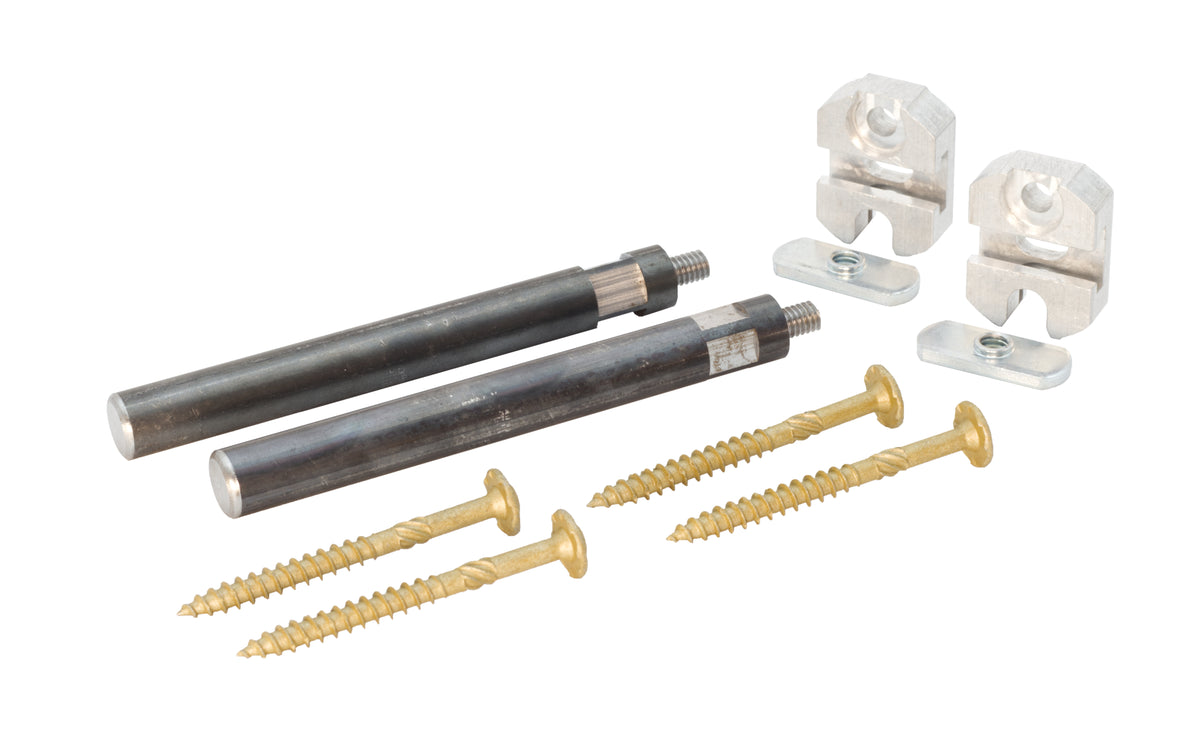

Includes: All required mounting hardware
Installation Type: Wall Mounted
Country of Origin: USA
Weight: 4": 1.25 lb, 6": 1.75 lb, 8": 2.25 lb per pair, boxed

Bracket & Burl sells PLY-LOC floating shelves and InnovaShelf hidden brackets. Each PLY-LOC shelf comes with EZ-LOC or T-LOC brackets and the mounting hardware; the shelf's title names which. The four InnovaShelf bracket systems are rated from 100 lb to 1,000 lb per pair.

Brackets included

Every PLY-LOC shelf comes with its brackets and mounting hardware. Brackets are also sold on their own.

EZ-LOC

The standard hidden bracket. Its arm fits into a channel routed in the shelf. Rated 100 to 125 lb per pair.

Shop EZ-LOC shelves →

T-LOC

The heavy-duty hidden bracket. Rated 200 to 1,000 lb per pair.

Shop T-LOC shelves →

TBR-LOC

A floating shelf bracket for shelves you make yourself. Rated 100 to 300 lb per pair.

Shop TBR-LOC brackets →

FCB

A bracket for wall-hung cabinets, such as floating vanities and upper cabinets. Rated 500 to 1,000 lb.

Shop FCB brackets →

14 species + paint-grade HDF

Ships sanded and unfinished

Every PLY-LOC shelf ships sanded and unfinished, ready for your stain, oil, paint or sealer. All 14 wood species and paint-grade HDF are offered in every width, depth and thickness.

Rustic Walnut

Rustic White Oak

Maple

Paint Grade HDF

Four of 15 shown. Also offered in Walnut, Beech, Red Oak, Cherry, Alder, Rustic Alder, Hickory, Rustic Hickory, and White Oak in Quarter Sawn, Plain Sawn and Rift Cut.

Browse floating shelves 6 depths, 10"–15" · 2 thicknesses, 2" & 2.5"

Load ratings

Brackets rated from 100 lb to 1,000 lb per pair

Each bracket's rating is in its product name.

EZ-LOC100 · 125 lb
TBR-LOC100 · 200 · 300 lb
T-LOC200 · 250 · 300 · 450 · 1,000 lb
FCB (cabinet)500 · 1,000 lb

Ratings are per pair, as published per bracket.

See all brackets

Raw steel floating shelf bracket held against a wall before installation

How it mounts

The bracket stays hidden

The bracket mounts to the wall and the shelf slides over it. No hardware shows below or beside the shelf.

The shelf is routed for the bracket it ships with
Ships unfinished, so you choose the finish
Brackets are also sold on their own, for shelves you make yourself

Need a custom size?

Wall plate

Bolts through the plate into framing. This is the only part that touches the wall.

Concealed arm

The shelf slides over the arm and hides it completely. Nothing visible once it's seated.

Shelf body

2" or 2.5" thick, routed for its bracket. Ships unfinished in 14 wood species or paint-grade HDF.

Anatomy of a floating shelf

Three parts: wall plate, arm and shelf

Select a marker to read about each part.

FAQ

Common questions

Do I have to buy brackets separately?

No. Every PLY-LOC floating shelf includes its brackets (EZ-LOC or T-LOC, named in the title) and the mounting hardware. Brackets are also sold on their own, for shelves you make yourself or to replace hardware.

Why does it ship unfinished?

So you can stain, oil, wax or paint it to match your cabinets or trim. Paint Grade HDF is for shelves that will be painted.

How much weight will it hold?

Each bracket's rating is in its product name: 100 lb to 1,000 lb per pair, depending on the system. InnovaShelf publishes the ratings; mount the bracket as its install guide shows for your wall type. For a long span or a heavy load, choose the bracket rating first, then the shelf.

What if my size isn't listed?

Listed sizes are 18" to 72" wide in 3" steps, 10" to 15" deep, and 2" or 2.5" thick. For any other size, send the size and species on the custom order form and we reply with a price.

Start a custom order Who we are

Sources for the numbers on this page

Species (14 woods plus paint-grade HDF), depths (10"–15") and thicknesses (2", 2.5") are the live option sets on PLY-LOC products at bracketandburl.com. Bracket load ratings are taken verbatim from the published product names of the EZ-LOC, T-LOC, TBR-LOC and FCB listings on this store and are stated per pair. Bracket & Burl is an authorized InnovaShelf dealer.
